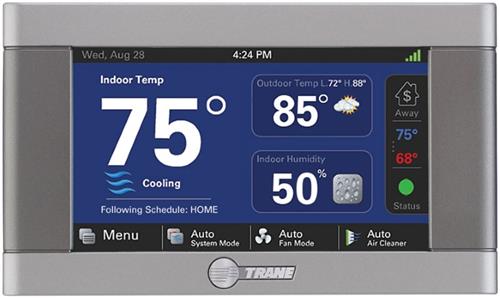

The XL824 connected control includes both built-in Nexia™ Z-Wave Bridge and Nexia™ Remote Climate Access. It’s a 7-day programmable unit with five heat and two cool settings that’s compatible with almost all HVAC systems, and can be controlled via wi-fi from your smartphone or tablet. Not only does the XL824 monitor indoor and outdoor temperatures so you can adjust your system to be energy-efficient, but it also monitors and controls humidity as well as telling you when it’s time to change a filter or schedule routine maintenance.

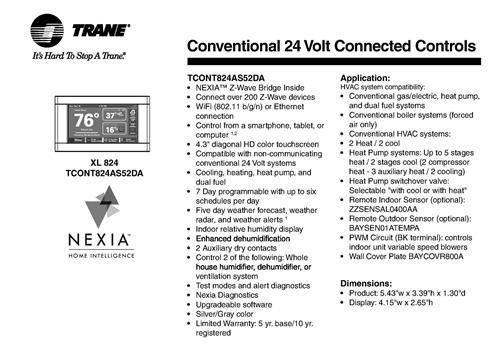

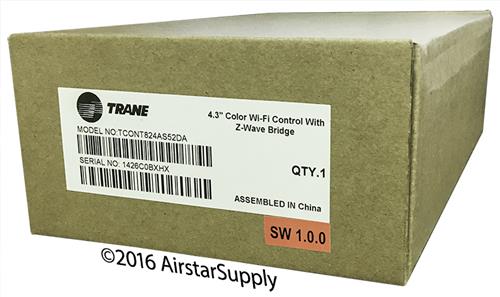

Trane Logo / Service First Part # TCONT824AS52DA / XL824
Features Include:
-
FREE SHIPPING!
-
NEXIA™ Z-Wave Bridge Inside
-
Connect over 200 Z-Wave devices
-
WiFi (802.11 b/g/n) or Ethernet connection
-
Control from a smartphone, tablet, or computer
-
4.3" diagonal HD color touchscreen
-
Compatible with non-communicating conventional 24 Volt systems
-
Cooling, heating, heat pump, and dual fuel
-
7 Day programmable with up to six schedules per day
-
Five day weather forecast, weather radar, and weather alerts¹
-
Indoor relative humidity display
-
Enhanced dehumidification
-
2 Auxiliary dry contacts
-
Control 2 of the following: Whole house humidifier, dehumidifier, or ventilation system
-
Test modes and alert diagnostics
-
Nexia Diagnostics
-
Upgradeable software
-
Silver/Gray color
-
Limited Warranty: 5 yr. base/10 yr. registered *
Application - HVAC system compatibility:
Replaces / Supersedes: TCONT ACONT824 TCONT824 ACONT824AS TCONT824AS52 ACONT824AS52 XL824 XV824 ACONT824AS52DA TCONT824AS52DA ACONT824AS52DB TCONT824AS52DB ACONT624AS42DA ACONT624 Gold 824 Control (Gold XV Control) and others
Click on any of the links below to download associated documentation.
»
Install Guide - TCONT824.pdf
