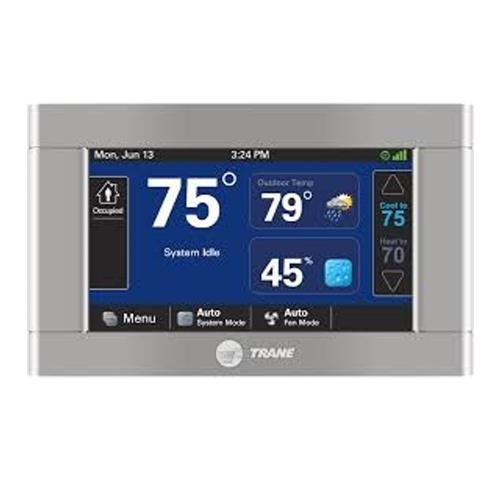

The Trane Pivot smart thermostat makes it easy to maintain an ideal environment that works for you. Commercial features enable you to manage comfort as a natural part of your day. Pivot even provides the ability to control multiple buildings, so business can thrive in every location.Pivot helps you keep occupants comfortable, while conserving energy after hours or when the building is not occupied. It accommodates a seven-day programmable schedule with up to six events (schedule changes) per day. With more scheduling flexibility and setback periods, you can maximize energy savings.
Trane / Service First Part # TCONT830
TCONT830AS52DA Thermostat for Commercial Applications Only
Features
-
FREE SHIPPING!!!
-
TCONT830AS52DA Designed for Commercial Business Applications
-
3 Levels of Access Restrictions , Manage user by enable / disable per Mobile Device
-
7-Day Programmable up to 6 Events per day , 3 Occupied / 3 Unoccupied
-
Efficienty Remote Management thru App
-
Dimensions: 5.43" x 3.39" x 1.3" HWD , Display 4.15" x 2.65"
-
Optional Accessories / Sold Separately:
NOTE: Use 18-gauge color-coded thermostat cable for proper wiring. All unused thermostat wire to be grounded at indoor unit chassis ground only. Shielded cable may be required if system interference is experienced. Ground only one end of the shield to the system chassis. Do not run wires in the same bundle with HVAC wires. ALWAYS KEEP AWAY from high voltage wiring to avoid interference.
Replaces / Supersedes: TCONT TCONT830 XL830 TCONT830AS52DA TranePivot Trane Pivot TCONT TCONT830AS52
Additional products available , Contact Us for more information.
Click on any of the links below to download associated documentation.
»
TZONE940 Installer's Guide.pdf
