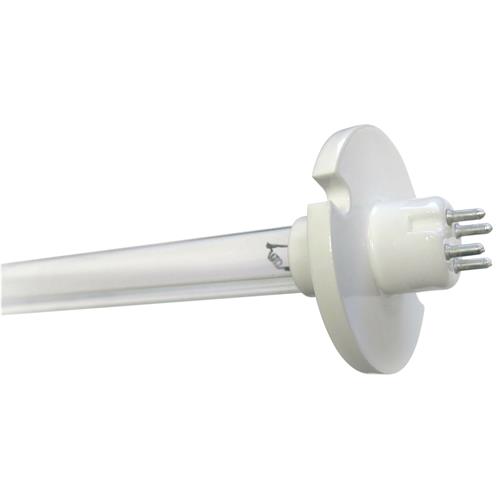

The Fresh-Aire TUVL UV light is one of the most popular germicidal UV light product for HVAC systems in the world. The Fresh-Aire UV replacement UV-C lamp is for Blue-Tube UV, AHU Series 1, and APCO MAG 15. This 15" lamp is made from hard quartz with a shielded hot filament and is warranted for 2 years effective 254 NM germicidal UV-C output. Includes pigtail cable.(Professional installation is recommended.)
Triatomic® TUVL-215P / TUVL-200 Fresh-Aire 2-Year UV Bulb
Product Description / Specifications:
-
FREE SHIPPING!!!
-
2 Year Replacement Bulb
-
Fits Blue-Tube , APCO & Most Standard Fresh-Aire UV Products
-
FRESHAIRE UV Product AHU SERIS1 , BLUE-TUBE , APCO MAG
-

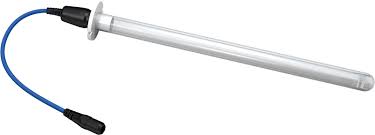

15" Lamp Includes Pigtail
-
13.5" Length (Glass) 14.5" (Overall)
-
.73" Diameter (Glass) 2.07" (Base)
-
57 - Rated Ouput µW/cm2 @ 1 Meter
-
5.7 UV-C Watts
-
425mA Current
-
17 Watts
Replaces / Supersedes: L81-109 , L81109 , TUVL215P , TUVL-215P , TUVL-200 , TUVL-200P , TUVL200P , TEITUVL215P , TEITUVL215 TUVL-215P-OS TUVL215POS and others
Fits model(s): TUVP-1D1 , TUVP1D1 , TUV-200S-I TUV-200D-I TUV-200T-I TUV-200Q-I TUV-BTER2 TUV-BTST2 TUV-APCO-MAG15-ER2 TUV-APCO-MAG15-ST2 TUV-APCO-MAG15-DT2 TUV-APCO-MAG15-2 TUV-APCO-MAG15
NOTE: Also Available in Contractor Packs / Case 1/2 Pallet or Pallet Quantities Contact Us for Pricing & Availability. Leadtimes for Bulk and/or Pallet orders may be impacted due to delays in Manufacturing
Additional Products & Quanitity Pricing Available , Contact Us for More Information
Click on any of the links below to download associated documentation.
»
Fresh-Aire UV Lamp Models.pdf
