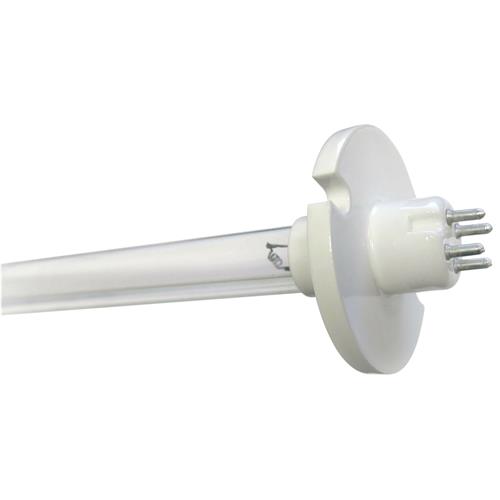

The Fresh-Aire TUVL UV light is one of the most popular germicidal UV light product for HVAC systems in the world. The Fresh-Aire UV replacement UV-C lamp is for Blue-Tube UV, AHU Series 1, and APCO MAG 15. This 15" lamp is made from hard quartz with a hot filament and is warranted for 1 year effective 254 NM germicidal UV-C output. Includes pigtail cable.(Professional installation is recommended.)
TUVL-115P / TUVL-100 FreshAire / Triatomic 1 Year UV Bulb
Product Description / Specifications:
-
FREE SHIPPING!!!
-
1 Year Replacement Bulb
-
Fits Blue-Tube , APCO & Most Standard Fresh-Aire UV Products
-
Freshaire UV Product AHU Series 1 , Blue-Tube , APCO MAG
-

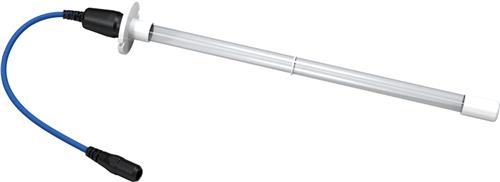

15" Lamp Includes Pigtail
-
13.5" Length (Glass) 14.5" (Overall)
-
.73" Diameter (Glass) 2.07" (Base)
-
57 - Rated Ouput µW/cm2 @ 1 Meter
-
5.7 UV-C Watts
-
425mA Current
-
17 Watts
Replaces / Supersedes: L81-108 L81108 TUVL115P TUVL-100P TUVL-100 TUVL100P TEITUVL115P TUVL-115P TUVL-115P-OS TUVL115POS and others
Fits model(s): TUVP-1D1 , TUVP1D1 , TUV-100 , TUV-100S-I , TUV-100D-I , TUV-100T-I , TUV-100Q-I , TUVBTER , BTER , TUV-BTER , BTST , TUV-BTST , TUVBTST , TUV-APCO-MAG15-ER , TUV-APCO-MAG15-ST , TUV-APCO-MAG15-DT , TUV-APCO-MAG15-1 , TUV-APCO-MAG15
NOTE: Also Available in Contractor Packs / Case 1/2 Pallet or Pallet Quantities Contact Us for Pricing & Availability. Leadtimes for Bulk and/or Pallet orders may be impacted due to delays in Manufacturing
Additional Products & Quanitity Pricing Available , Contact Us for More Information
