Typically used for AC Power distribution system mains , feeders, disconnects and branch circuits. Provides protection of motors , motor branch circuits , transformers and other inductive loads. General purpose for air conditioning , heating , lighting and other non-inductive loads.

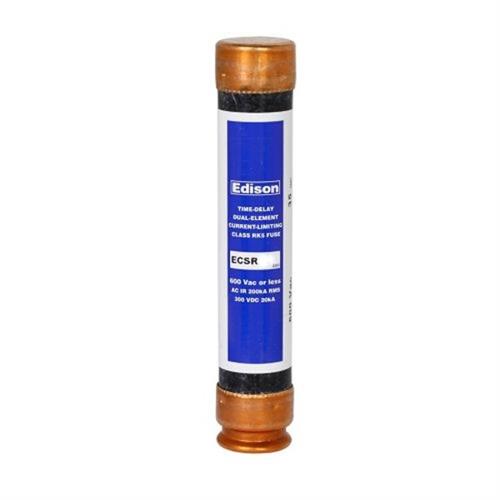

ECSR60 • Dual Element Time-Delay Fuse, Class RK5
Features / Specifications
-
FREE SHIPPING!
-
60 Amp
-
Class RK5
-
Dual Element Time Delay Fuse
-
600V Application
-

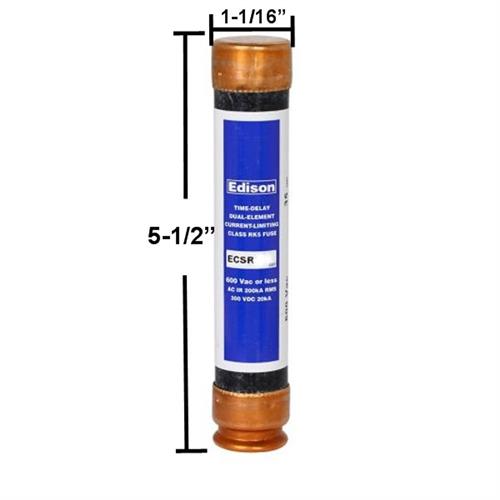

5-1/2" overall length x 1-1/16" diameter
-
UL Listed to Standard 248-12 File E2137
-
CSA Certified to Standard C22.2 no. 248.12
-
DC Listed to UL Standard 248 TRS Only
Applications
-
Motor Circuits
-
Mains
-
Feeders
-
Branch Circuits
-
Transformers
-
Service Entrance Equipment
-
Genereal Purpose Equipment
Supersedes / Replaces: TRS60R ECSR60 ECSR-60 FLSR60 FLSR-60 FRNR60 FRS-R-60 7-CRSR60 MARS 82142 Cefco CRS-R LOS-R Lttlefuse FLSR Busman FRS-R FRSR HAS-R HASR Ferraz/Shawmut TRS60R TRS-60R and others.
Additional fuses available , Contact Us with your System's Model & Serial Number for more information.
Click on any of the links below to download associated documentation.
»
