Tri-Onic TR-R current-limiting time-delay fusses are engineered for overcurrent protection of motors , transformers , service entrance equipment , feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associatied with todays motors and transformers.

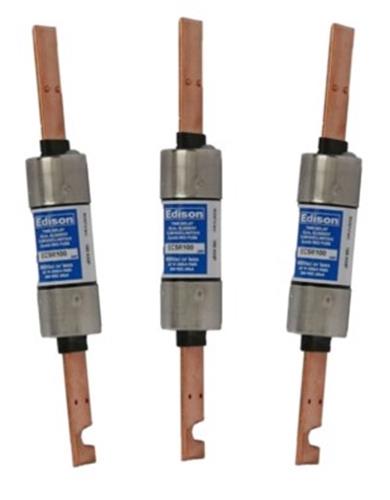

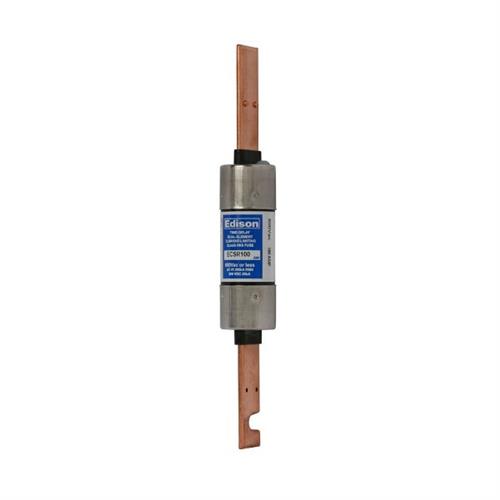

ECSR100 • Dual Element Time-Delay Fuse, Class RK5
Features / Specifications
-
FREE SHIPPING!
-
100 Amp
-
Class RK5
-
Dual Element Time Delay Fuse
-
600V Application
-

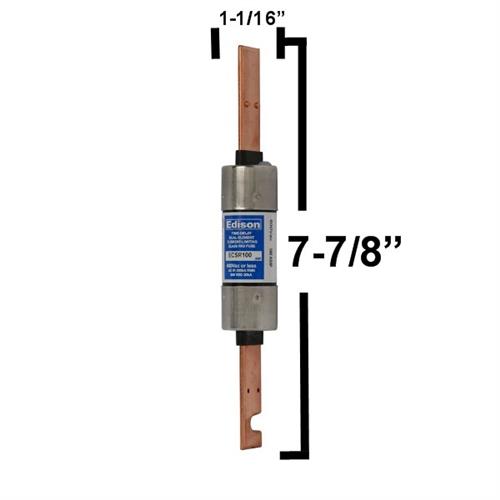

7-7/8" overall length x 1-5/16" diameter
-
UL Listed to Standard 248-12 File E2137
-
CSA Certified to Standard C22.2 no. 248.12
-
DC Listed to UL Standard 248 TRS Only
Applications
-
Motor Circuits
-
Mains
-
Feeders
-
Branch Circuits
-
Transformers
-
Service Entrance Equipment
-
Genereal Purpose Equipment
Supersedes / Replaces: ECSR100 ECSR-100 FLSR100 FLSR-100 FRNR100 FRS-R-100 7-CRSR100 MARS 82146 Cefco CRS-R LOS-R Lttlefuse FLSR Busman FRS-R FRSR HAS-R HASR Ferraz/Shawmut TRS100R TRS-100R and others.
Additional fuses available , Contact Us with your System's Model & Serial Number for more information.
