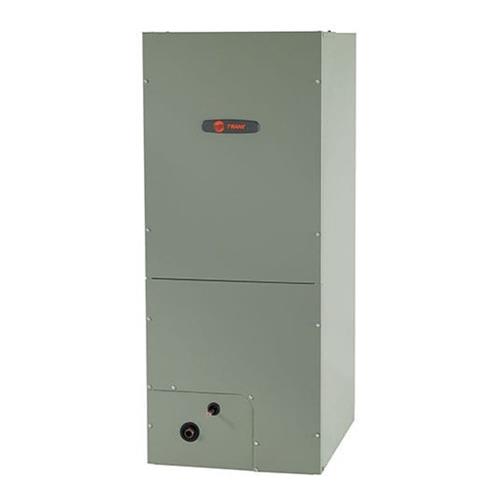

The TEM6 series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units offer a VARIABLE SPEED Motor & Comfort-R Technology , designed to match with an array of air conditioning and heat pump applications. Several models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available. (Sold Separately)

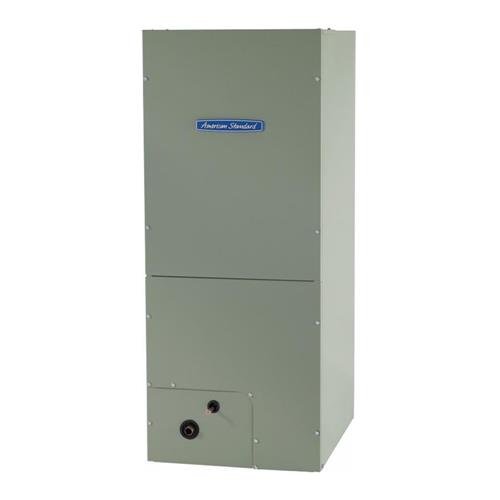

American Standard / Trane Model # TEM6A0B24*
Product Features
-
2 Ton
-
Voltage: 208/230/1/60
-
Variable Speed Blower Motor
-
R410A Thermal Expansion Valve
-
Multi-Position UP/Downflow, Horizontal Left /Right
-
Galvanized Steel Cabinet with captured foil face insulation
-
ALL Aluminum Coil with Enhanced Patented Coil Fin
-
Optional electric heat (Sold Separately)
-
No-rust polymer drain pan
-
Horizontal Drain pan
Important: Condensate management kit is required for all 5 ton air handler models installed in downflow applications.
Replaces / Supersedes: TEM6 TEM6A0B24 TEM6A0B24H21 TEM6A0B24H21SB & Similar Convertible Air Handlers
NOTE: Product Availability , Shipping & Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Contact Us if you have any concerns or to confirm availability prior to ordering.
Freight Not Included & May Be Additional depending on your location, Contact Us with for more information
Click on any of the links below to download associated documentation.
»
TEM6 Product Data.pdf
»
TEM6 Submittal Data.pdf
»
TEM6 Use & Care Guide.pdf
