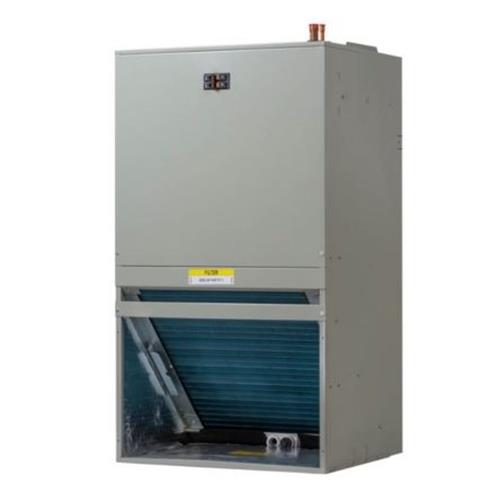

The TMM5B series wall mount air handler is designed for installation in a closet, utility room, alcove and can be wall mounted. These versatile units are applicable to air conditioning and heat pump applications. Field installed electric resistance heaters are available (Sold Separately)
First Company Model # TMM5B0B30M21SA
Product Features
-
R410A Refrigerant
-
2-1/2 Ton , Nominal Cooling (tons)
-
Voltage: 208/230/1/60
-
Front or bottom return air
-
Painted finish on galvanized steel
-
Constant torque ECM motor with fan-off time delay programming
-
Factory installed R410A thermal expansion valve
-
Filter Size: (1) 20" x 20" x 1"
-
5, 7.5, and 10 kW single phase electric heaters
-
Circuit breakers are standard on all single phase 5, 7.5, and 10 kW heaters.
-
R410 TXV kit - 4AYTXVH3G2436
-
R22 TXV conversion kit - 2AYTXVH3G2436
-
Front louver panel 20.5" width - BAYFRTLOUPNL20 (1-Pack)
-
Front louver panel 22" width - BAYFRTLOUPNL22 (1-Pack)
Replaces / Supersedes: TMM5 389401 TMM5B0B30M21 TMM5B0B30M21S TMM5B0B30M21SA & Similar Front Return Air Handlers
NOTE: Product Availability , Shipping & Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Contact Us if you have any concerns or to confirm availability prior to ordering.
Freight Not Included & May Be Additional depending on your location, Contact Us with for more information
Click on any of the links below to download associated documentation.
»
TMM Brochure.pdf
»
TMM5 Submittal Data.pdf
»
TMM5 Installer Guide.pdf
