The TEM4 series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units are applicable to air conditioning and heat pump applications. Several models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available. (Sold Separately)

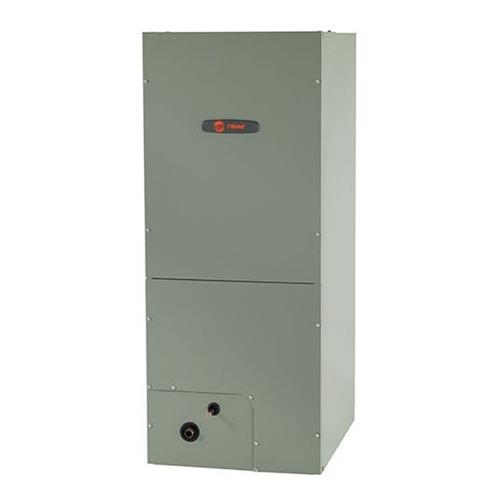

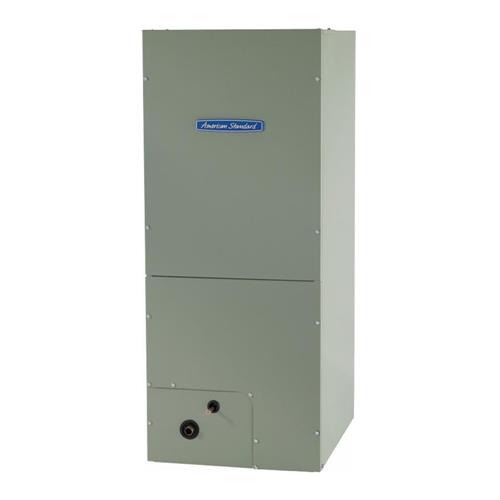

American Standard / Trane Model # TEM4A0B48*
Product Features
-
4 Ton
-
Voltage: 208/230/1/60
-
R410A Thermal Expansion Valve
-
Multi-Position UP/Downflow, Horizontal Left /Right
-
Painted metal cabinet with captured foil face insulation
-
ALL Aluminum Coil with Enhanced Patented Coil Fin
-
Draw Through Design
-
Horizontal Drain pan
Important: Condensate management kit is required for all 5 ton air handler models installed in downflow applications.
Replaces / Supersedes: TEM4 TEM4A0B48 TEM4A0B48S31 TEM4A0B48S31SB & Similar Convertible Air Handlers
NOTE: Product Availability , Shipping & Leadtimes may be impacted due to delays in Manufacturing and/or Supply Chain disruptions. Contact Us if you have any concerns or to confirm availability prior to ordering.
Freight Not Included & May Be Additional depending on your location, Contact Us with for more information
Click on any of the links below to download associated documentation.
»
TEM4 Submittal Data.pdf
»
TEM4 Installation Guide.pdf
»
TEM4 Product Data.pdf
