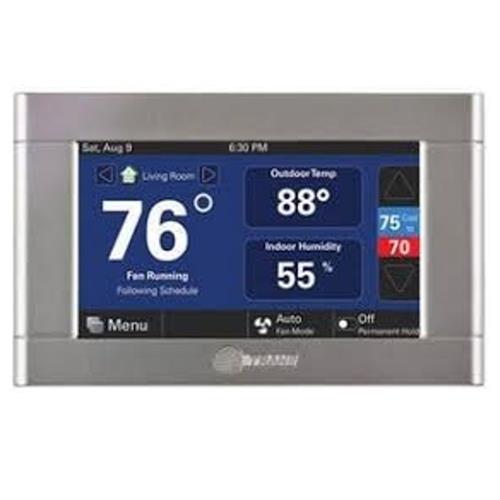

Trane OEM ComfortLink Wired Touchscreen Zone Sensor with Display
Trane / Service First Part # XL1040
Features
-
FREE SHIPPING!!!
-
TZONE1040AC52ZA , replaces previous TZONE940 Models
-
Compatible with AccuLink & ComfortLink Zoning Systems
-
3-Wire Communicating Zone Sensor
-
4.3" Backlit Touch Screen , Standard Display
-
Dimensions: 5.43" x 3.39" x 1.3" HWD , Display 4.15" x 2.65"
NOTE: Use 18-gauge color-coded thermostat cable for proper wiring. All unused thermostat wire to be grounded at indoor unit chassis ground only. Shielded cable may be required if system interference is experienced. Ground only one end of the shield to the system chassis. Do not run wires in the same bundle with HVAC wires. ALWAYS KEEP AWAY from high voltage wiring to avoid interference.
Replaces / Supersedes: XL1040 TZONE1040 TZONE1040AC52ZA SEN02036 SEN2036 SEN-2036 SEN02091 SEN-2091 SEN2091 TZONE940AC52Z TZONE940 XL940 AZONE940 AZONE940AC52ZAA SEN02092 SEN2092 SEN-2092 SEN-2037 SEN2037 SEN02037 TCONT
Click on any of the links below to download associated documentation.
»
TZONE940 Installer's Guide.pdf
