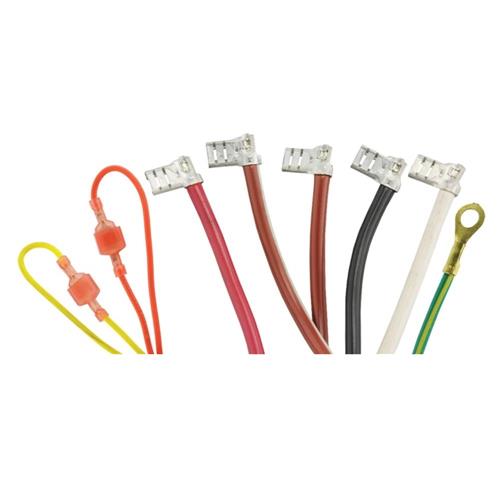

Multi-Horsepower motors are specially designed to cover a range of applications. Condenser / heat pump fan motors range from 1/2 to 1/6 in either 1075 or 825. These motors feature reversing plugs , extended thru bolts, 36" leads and are designed for 440 VAC capacitors.

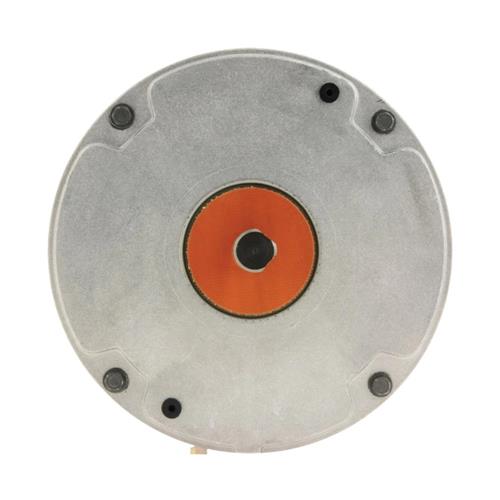

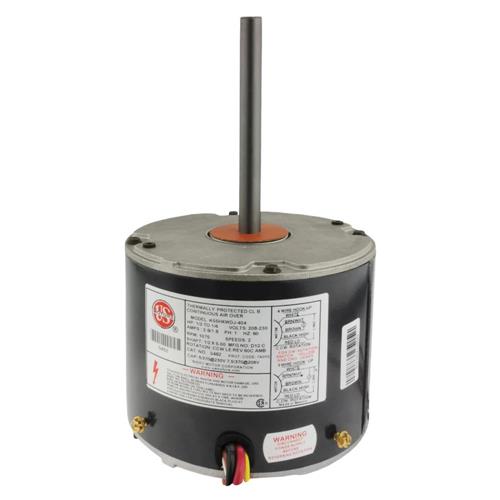

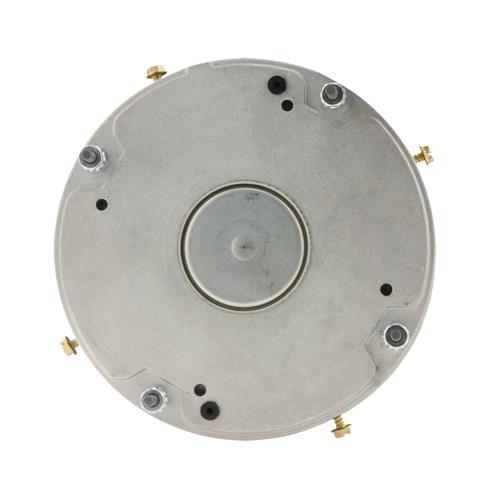

Universal 'Rescue' Motor 5462
Features
-
FREE SHIPPING!
-
1/3 HP , 1/4 HP , 1/5 HP , 1/6 HP
-
208-230/60/1 Voltage Rating
-
1075 RPM , 2-Speed
-
Reversible Rotation
-
48 FRAME
-
Sleeve Bearing
-
7.5 x 370 Capacitor / Sold Separately
Replaces / Supersedes: K55HXRPE-5669 51-23053-21 S89-095 S81-133 Rescue Motors Emerson 5462 Century FE6000F ORM5458 662766396720 K55HXWDJ-0404 MOT9987 MOT-9987 MOT09987 and 1000's of OEM American Standard Bryant Carrier Rheem / Ruud , Trane and other motors.
Commonly used in 1000's of HVAC systems.
Additional products available , Contact Us with your System's Model & Serial Number for more information.
Rated to operate up to 1-inch wc
Available in 5- to 10-inch, 12-, 14-, 16-, and 18-inch diameter sizes
Product Specifications
ApplicationZone DamperVoltage24VSize (in.)12 in. diameterSize (mm)305 mm diameterDamper TypeSingle-blade, roundShapeRoundMotor or Actuator MountingSide or TopMotorPower closed, spring open, reversibleMotor Timing30 seconds power open/10 seconds spring returnWires to Motor2Other Motor InformationRange stops
