Multi-Horsepower motors are specially designed to cover a range of applications. Condenser / heat pump fan motors range from 1/2 to 1/6 in either 1075 or 825. These motors feature reversing plugs , extended thru bolts, 36" leads and are designed for 370VAC capacitors.

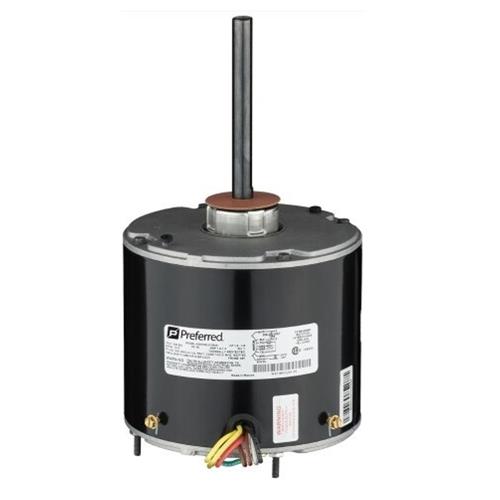

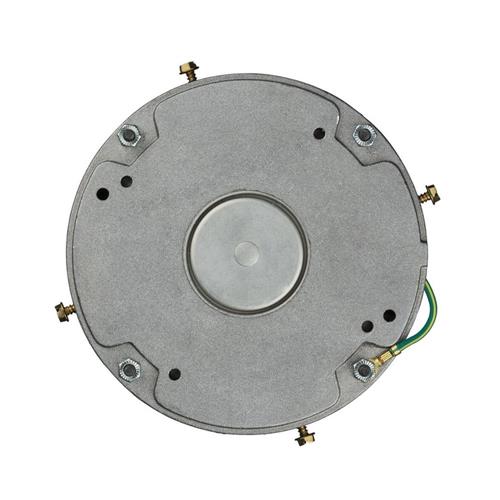

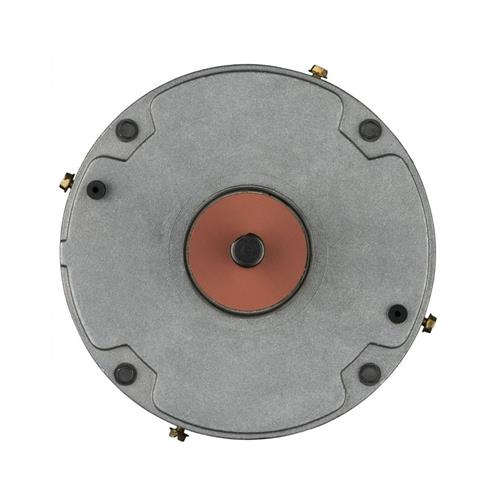

Universal 'Rescue' Motor W51-MHCJA1-02
Features
-
FREE SHIPPING!
-
1/3 HP , 1/4 HP , 1/5 HP , 1/6 HP
-
208-230/60/1 Voltage Rating
-
1075 RPM
-
Reversible Rotation
-
48 FRAME
-
Sleeve Bearing
-
10/370 Capacitor / Sold Separately
Replaces / Supersedes: Rescue Motors W51-MHCJA1-01 MHCJA1 PROTECH W51MHCJA102 W51-MHCJA1-02 662766554403 SDW51-MHCJA1-02 SDW51MHCJA102 and 1000's of OEM American Standard , Bryant , Carrier , Rheem / Ruud , Trane and other motors
Commonly Used in 1000's of HVAC systems.
Additional products available , Contact Us with your System's Model & Serial Number for more information.
Features
Features glavanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
Can be field-converted when used as an independent zone or for fresh air intake
Rated to operate up to 1-inch wc
Available in 5- to 10-inch, 12-, 14-, 16-, and 18-inch diameter sizes
Product Specifications
ApplicationZone DamperVoltage24VSize (in.)12 in. diameterSize (mm)305 mm diameterDamper TypeSingle-blade, roundShapeRoundMotor or Actuator MountingSide or TopMotorPower closed, spring open, reversibleMotor Timing30 seconds power open/10 seconds spring returnWires to Motor2Other Motor InformationRange stops
