BMI Motor Start Capacitors are non-polarized aluminum electolytic capacitors designed for intermittent duty in AC motor starting circuits as well as starting fractional horsepower, single-phase electric motors and gear motor applications. Housed in rugged plastic cases, which require no added installation, these capacitors Made in th U.S.A. are designed and engineered to the highest EIA Standards. 092A Meets EIA Type 2 Specifications, meets requirements of EIA-463-A.

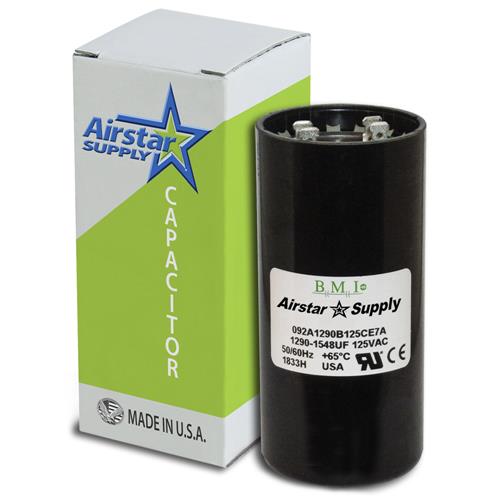

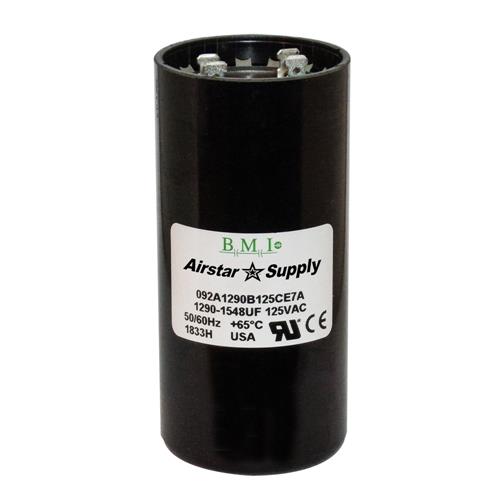

BMI Capacitor # 092A1290B125CE7A
Specifications
Features
-
FREE SHIPPING!
-
All Capacitors are Individually Boxed
-
Plastic Case , Moisture and Oil Resistant
-
UL 810 Recognized Capacitors
-
-40 to 165°C Operating Temperature
-
50/60 Hz Operating Frequency
-

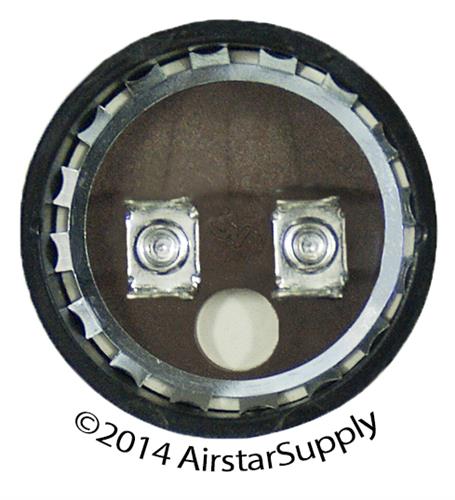

1/4" Quick Disconnect Terminals
Replaces / Supersedes: JARD 11974 , MARS 11074 Caps , Dayton Grainger 6FLK2 , NTE Electronics MSC125V1290 , Packard PMJ1290 PMJ1290A , Temco , Totaline , Vanguard BC-1290 and others with matching specifications. Used for HVAC Applications , Garage Door Openers , Well Pumps , Pool Pumps and Other Applications
