BMI Motor Start Capacitors are non-polarized aluminum electolytic capacitors designed for intermittent duty in AC motor starting circuits as well as starting fractional horsepower, single-phase electric motors and gear motor applications. Housed in rugged plastic cases, which require no added installation, these capacitors Made in th U.S.A. are designed and engineered to the highest EIA Standards. 092A Meets EIA Type 2 Specifications, meets requirements of EIA-463-A.

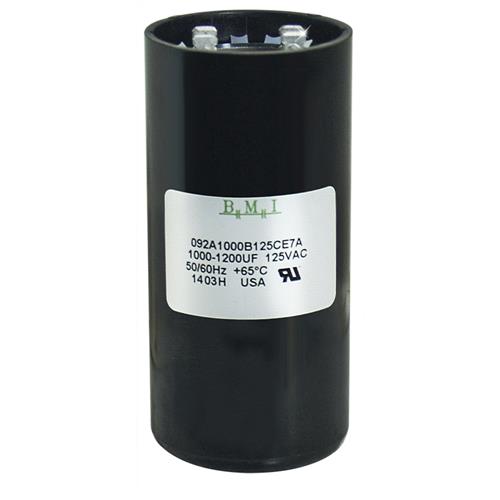

BMI Capacitor # 092A1000B125CE7A
Specifications
Features
-
FREE SHIPPING!
-
All Capacitors are Individually Boxed
-
Plastic Case , Moisture and Oil Resistant
-
UL 810 Recognized Capacitors
-
-40 to 165°C Operating Temperature
-
50/60 Hz Operating Frequency
-

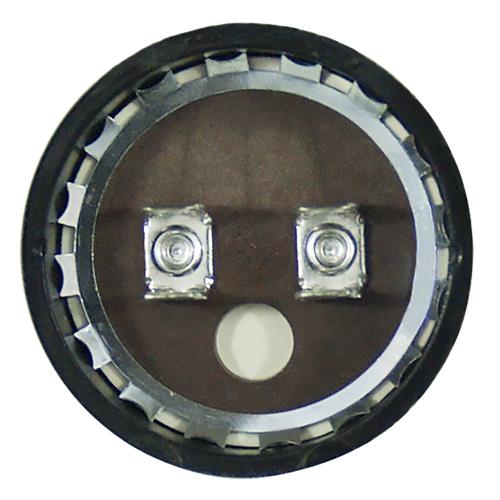

1/4" Quick Disconnect Terminals
Replaces / Supersedes: JARD 11930 , MARS 11030 Caps , Dayton Grainger Caps , JARD 11930 , NTE Electronics MSC125V1000 , Packard PMJ1000 PMJ1000A SC0050 , Totaline , Vanguard BC-1000 Supco CS1000-1200X110 and others with matching specifications. Used for HVAC Applications , Garage Door Openers , Well Pumps , Pool Pumps and Other Applications
