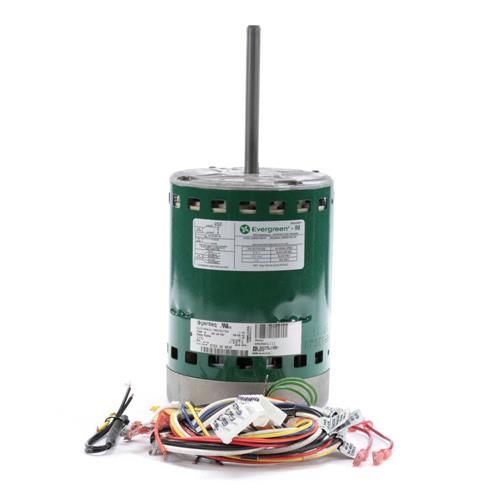

6010IM , 1 HP 115/230V Evergreen IM Motor

SKU: 6010 | Brand: Capcom / Genteq / GE
QTY
Price
$340.00/each
This Item Ships FREE!
Add To Cart
Overview
Documentation
Media
Evergreen IM High-Efficiency ECM Replacement Motor that is designed to replace factory PSC blower motors in HVAC systems including fossil fuels , electric heat , A/C , heat pump , dual fuel and geothermal; does not replace variable speed X13 ECM Motors.  Evergreen motors use up to 25% fewer watts in operating mode and up to 74% fewer watts than a PSC motor in constant fan.

Evergreen # IM 6010

Features / Specifications
  • 1 HP  ( 1 , 3/4 , 1/2)
  • 115/230V , Single Phase
  • Operating Speed Range 1070 RPM
  • FREE SHIPPING!
  • Max Current , 11.0/6.7 Amps
  • NEMA 48-Frame , 5.6" Diameter
  • 4-Speed Selections for Heating & Cooling
  • Auto Sensing Technology
  • UL & CSA Recognized
  • 2-Year Warranty
Replaces / Supersedes:  6010 , 6010IM , GE 5SME39SXL111 and 100's of PSC Motors.  DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors

Additional Products & Discounts available...visit our New Website: www.AirstarSolutions.com or Contact Us
Click on any of the links below to download associated documentation.

» Evergreen IM Brochure.pdf
» Evergreen IM 6010 Specifications.pdf
