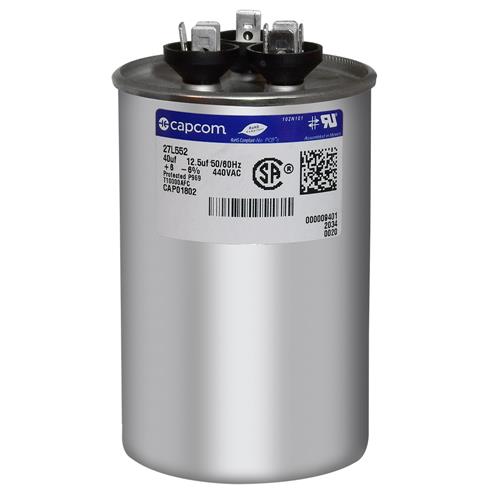

40 + 12.5 uf / Mfd x 440 VAC OEM Trane Capacitor

SKU: CAP01802 | Brand: Trane
QTY
Price
$26.45
1-2
Pieces
 $23.25
3-5
Pieces
 $20.75
6-10
Pieces
 $18.85
11-24
Pieces
 Quote
25
& Over
This Item Ships FREE!

Add To Cart
Overview
CAPCOM Replacement for Trane OEM 'ServiceFirst' Capacitor

Trane / ServiceFirst Part  #  CAP01802 / CPT01802

Specifications
  • FREE SHIPPING!
  • Round , Dual Capacitor
  • 40/12.5  uF Microfarad Rating
  • 440 VAC Rating

Features

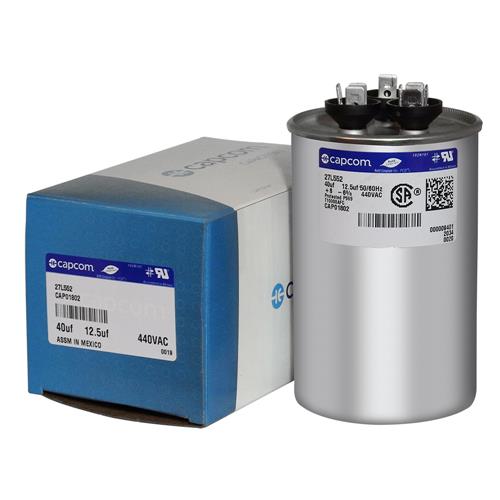

  • All Capacitors are Individually Boxed
  • High-Grade Metallized Polypropylene Film (5 to 12 microns)
  • UL Approved & Patented Pressure Sensitive Interrupter (PSI)
  • Proven EIA-456 Compliant with 60,000 Hour Reliability
  • RoHS Compliant with 1-Year Warranty
  • Subjected to 100% Electrical Testing
  • Click Here to Learn More About Cheap Capacitors
Replaces / Supersedes all old GE Industrial Capacitors SFCAP40D125440R CPT683 CPT0683 CPT-0683 CPT00683 CPT1802 CPT-1802 CPT01802 CAP1802 CAP-1802 CAP01802 27L552BX 27L552 SFCAP40D125440R 25L759 and other 40 + 12.5  x 440 VAC Round Capacitors

Commonly Found in the Following American Standard & Trane Units:  6H1042A100A0 6H1042A100A1 6H1042A100A2 6H2042A100A0 6H2042A100A1 6H2042A100A2 6H4042A100A0 6H4042A100A1 6H4042A100A2 6H4042A100A3 7A2042A100A0 ATP036C100A1 ATP036C100A2 ATP042C100A1 ATP042C100A2 AWN042C100A1 AWN060C100A1 AWP042C100A1 TTP036C100A1 TTP036C100A2 TTP042C100A1 TTP042C100A2 TTP042C100A3 TWN042C100A1 TWN042C100A2 TWN060C100A1 TWN060C100A2 TWP042C100A1 TWP042C100A2 TWX036C100A3 TWX042C100A3 TWX060C100A4

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

Additional products available , Contact Us  with your System's Model & Serial Number for more information.
