Flood Prevention Switches are simple to install, easy to service and extremely reliable. As water level in the auxiliary or main drain pipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system—thus preventing water from overflowing and causing damage to doors, walls and ceilings. At the heart of the switch is a durable yet precise magnetic reed switch. Constructed of materials that will not rust or stick, the switch operates smoothly every time.
Safe Switch / Condensate Switch # FSC5002U / CS-3 / FPS-B
Features / Product Specifications
-
FREE SHIPPING!
-
Condensate overflow switch
-
Connect to either red or yellow wire
-
Easy to Install , "snap & go' Bracket
-

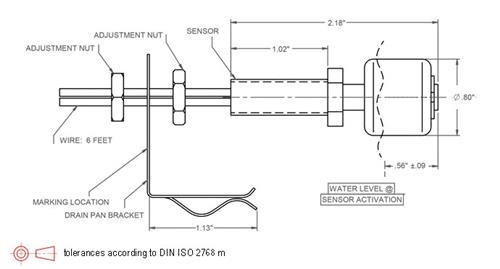

Minimum pan depth is 1-3/8-inch
Package Includes
-
Pre-wired 6-Foot
-
18 Gauge Lead Wires
-
Stainless Steel Clip/Bracket
Replaces / Supersedes: SWT3674 SWT-3674 SWT03674 SWT3234 SWT-3234 SWT03234 MARS 21792 685744217923 FSC5002U FSC5002 CS3 CS-3 FPS-B TP-SS3 97631 97647 TP-SS-3 B17-154 SS-3 SS3 84-SS3 021449976473 10021449976470 662766290042 1394543330889 118956 RXHKA01 RXHK-A01 B17154 B17-154 Safe-T-Switch® Overflow Shut-Off Switch and Similar Condensate Switches.
Our Standex Float Switches are UL® Listed to comply with UL 508 and most applicable building codes. Tested for 6000 cycles at 1.25 amps and listed for use in a 24-volt circuits by Underwriters Laboratories®.
Click on any of the links below to download associated documentation.
»
Float Switch Flyer.pdf
»
Submittal Data Sheet FPS-B.pdf
