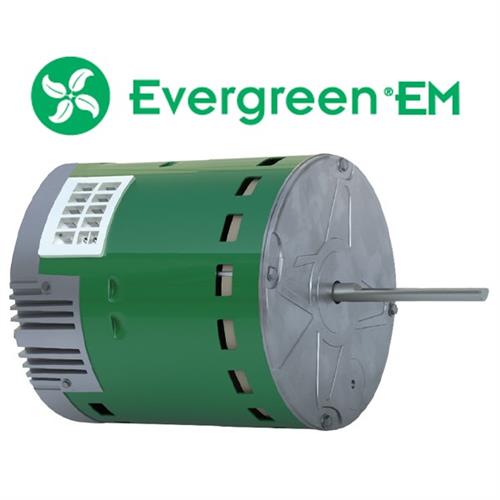

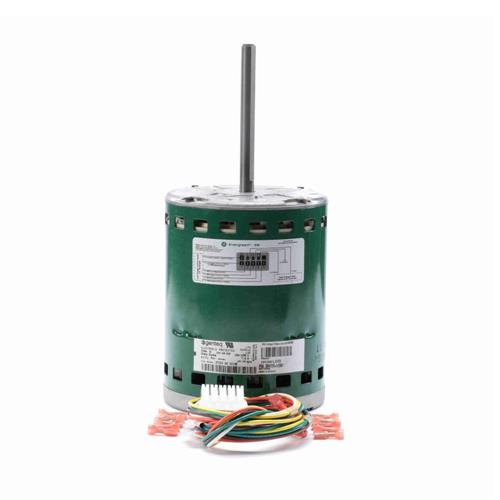

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.
Evergreen # EM 6210X
Features / Specifications
-
1 HP
-
Dual Voltage 115/208-230 V
-
-
-
Max Current 7.6 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes American Standard & Trane D672366G02 , D672366G26 , D672366G42 , MOT12307 , MOT-12307 , MOT12243 , MOT-12243 , MOT12290 , MOT12307 , MOT12308 , MOT12318 , MOT13008 , MOT13042 , MOT13119 , MOT13120 , MOT13121 , MOT13134 , MOT13136 , MOT13595 , MOT13910 , MOT14008 , MOT17041 , MOT17047 , MOT17057 , MOT17839 , 5SME39SXL013A , X70370580080
Replaces / Supersedes Carrier / ICP 1173685 , 1177020 , 1174362 , 1177600 , 1177602 , 1177605 , 1177612 , 1176468 , 5SME36SXL055 , 5SME39SXL055B , 5SME39SXL093A , 5SME39SXL359 , 5SME39SXL381 , 5SME39SXL386 , HD52AR239 , HK52ER240 , HK52ER244 , HK52AE133A , 815585020530
Replaces / Supersedes 101207-08 , 101207-05 , other 1 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10801. DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
