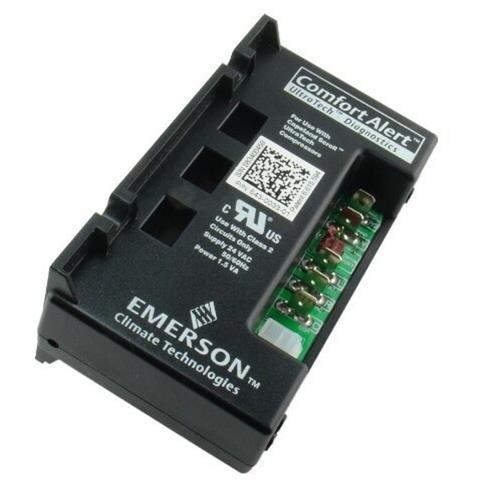

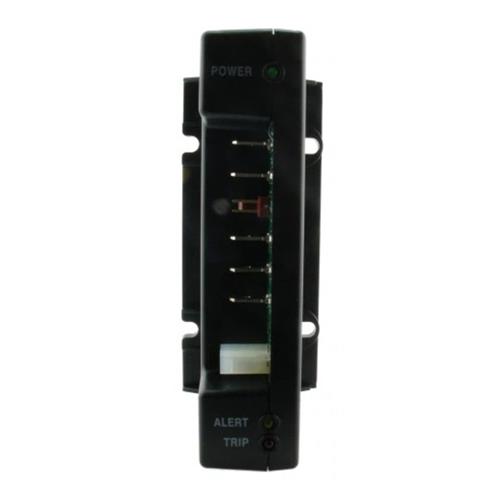

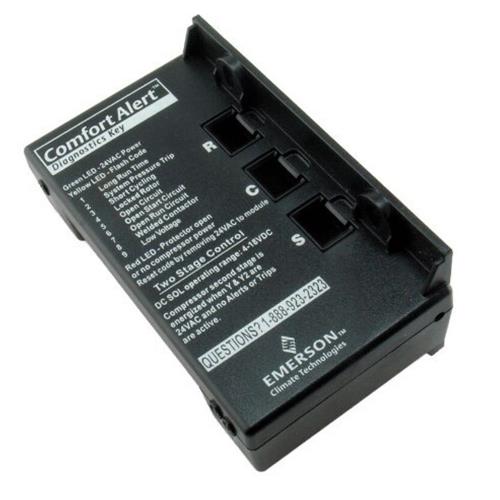

Comfort Alert installs easily in the electrical box of a commercial condensing unit or inside a rooftop unit. It is completely self-contained, with no external sensors required. Once installed, Comfort Alert monitors vital data from the Copeland Scroll compressor, quickly pinpointing the root causes of common malfunctions - everything from common electrical problems to broad system faults. A flashing LED indicator quickly communicates the alert code and directs the service technician to the problem.
Copeland® Secure Start # 42-101504-04
Features:
-
FREE SHIPPING!
-
For two-stage Copeland UltraTech scroll compressors
-
A/C and Heat Pump: One or Two Stage with Copeland Single-Phase Scroll
-
Recommended that the control transformer be upgraded to accommodate an additional load of approximately 10VA
-
Does not include power savings, and is intended for problem installations where the compressor does not shift fully into high stage when using this module
-
18-30 VAC Power Supply
-
48-62 Hz Power Supply Frequency
Replaces / Supersedes: Similar ComfortAlert Modules 543-0033-01 543003301 4210150404
Additional products available , Contact Us with your System's Model & Serial Number for more information
Click on any of the links below to download associated documentation.
»
