The Fresh Air Ventilation Control / FAVC & Fresh Air Damper / FAD helps manage fresh outdoor air intake and stale indoor air exhaust to provide whole-house , balanced ventilation while satisfying industry standards.
Field Controls # FAV-6

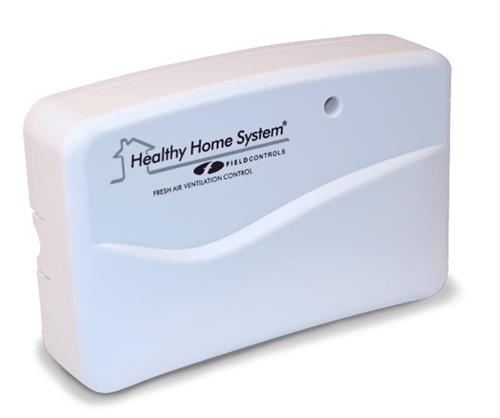

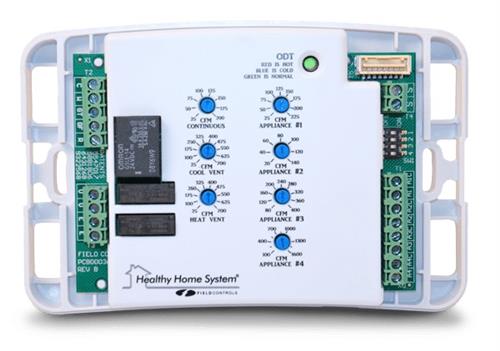

Fresh Air Ventilation Control (FAVC)
-
FREE SHIPPING!!!
-

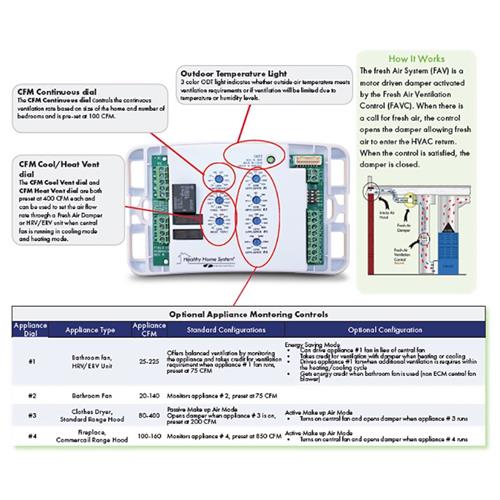

Normal or Economy mode of operation
-
Multiple climate application mode: Normal, Hot, Cold or Disabled
-
Adjusts ventilation need based on 30-minute time periods
-
Factory pre-set settings
-
Simple Fresh Air Ventilation using Fresh Air Damper or HRV/ERV devices
-
Monitoring capability (up to 4 appliances)
-
Monitoring and control capability
-
Built-in selectable enthalpy control
-

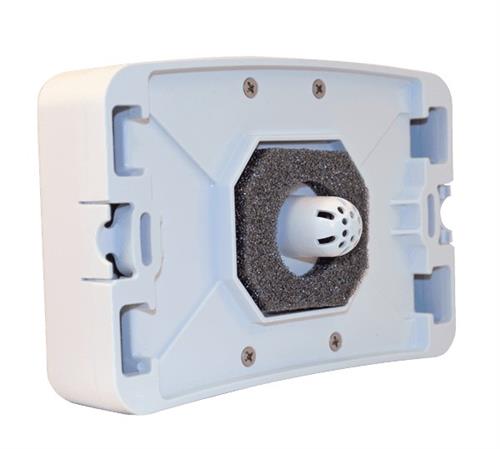

Temperature sensor located in return air ductwork
-
Compatible with any HVAC system having accessible 24VAC R W Y G terminals:
-
Conventional Heat/Cool HVAC systems
-
Heat pump systems
-
Hydronic air handlers
-
Stand-alone configuration

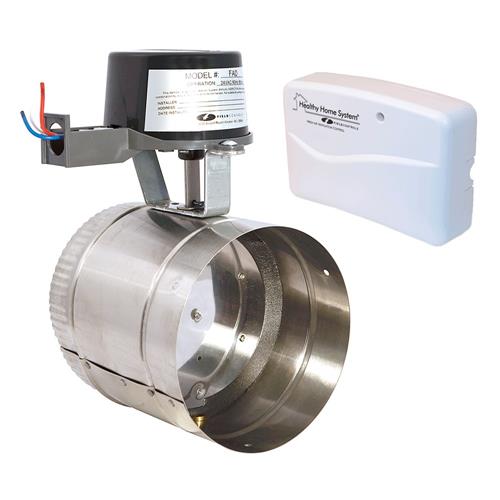

6" Fresh Air Damper (FAD)
-
24VAC Power Open , Power Close Motorized Damper
-
Meets ASHRAE 62.2 and Other Fresh Air Ventilation Codes & Standards
-
Very low power requirement and air flow resistance
-
Stainless steel body and gate
-
Tear-resistant closed-cell foam rubber seal tested 500K+ cycles
-
Seal flammability meets FMVSS-302
-
Gas vent damper motor and circuit board certified 100K+ cycles
-
Patented damper monitor feature detects and diagnoses failure
Replaces / Supersedes: FAS6 FAS-6 FAV6 FAV-6 46634300 662766676068 602600706
Aprilaire 8120 8120A 8126 8126A Honeywell Y8150 LIPIDEX G2 / G20k Jackson Systems VCS iO-FAV-06 and others
Additional Products Available , Contact Us for More Information
Click on any of the links below to download associated documentation.
»
Fresh Air Ventilation System.pdf
»
FAVC Comparison Brochure.pdf
