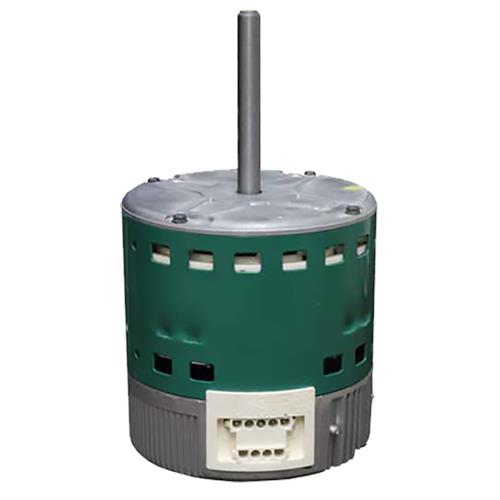

6503V, 1/3 HP 120/240V Evergreen VS Motor

SKU: 6503V | Brand: Capcom / Genteq / GE
QTY
Price
$326.40/each
This Item Ships FREE!
Add To Cart
Overview
Documentation
Media

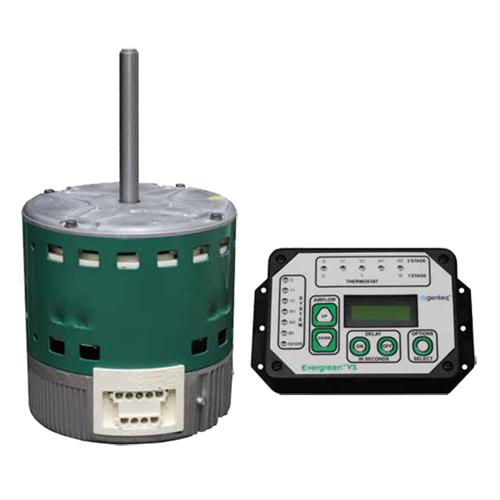

The Evergreen® VS motor and Evergreen VS user interface are designed to replace Genteq® constant airflow (variable speed) ECM indoor blower motors. The Evergreen VS product line is designed specifically to replace Genteq models 2.3, Eon® and 3.0 motors. These motors represent the largest volume of variable speed motors used to date in HVAC OEM indoor blower motor applications.

Plug & Play for 4-Pin Installations.  User Interface Module 5K010 required for 16-pin installations.   Match the horsepower (HP) and voltage (VAC) ratings of the new Evergreen® VS motor to the motor being replaced. It is not necessary for the RPM or the amperage (FLA) to match.

Evergreen # VS 6503V

Features / Specifications
  • 1/3 HP
  • 120/240V Single Phase Input, 50/60Hz
  • Variable Speed , Pre-Programmed
  • FREE SHIPPING!
  • 1/2" Shaft
  • NEMA 48-Frame , 5.6" Diameter
  • Horizontal & Vertical Shaft Down (VSD) Mounting
  • MOTOR ONLY / INTERFACE SOLD SEPARATELY
  • Reversible Rotation: CCW or CW
  • UL & CSA Recognized
  • 2-Year Warranty

Replaces / Supersedes:   5SME39DXL3226 6503 6503VS American Standard , Trane , Lennox , Carrier Infinity Evolution Rheem , Ruud and 100's of other OEM Variable Speed Motors.

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

Additional Products & Discounts available...visit our New Website: www.AirstarSolutions.com or Contact Us
Click on any of the links below to download associated documentation.

» Evergreen VS Brochure.pdf
» Evergreen VS Installation Guide Motor.pdf
» Evergreen VS Installation Guide User Interface.pdf
