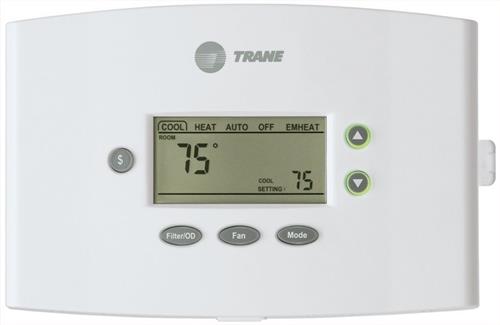

TCONT402AN32D is a digital non-programmable 3 Heat / 2 Cool/Heat Pump/Heat-Cool wall mounted low voltage (24VAC) Comfort Control with backlit LCD and keypad. It maintains room temperature by controlling the operation of heating, cooling and heat pump systems. The Comfort Control is easily configured for heat pump or cooling only and gas or electric heat applications via the user friendly Installer Setup menu. The Comfort Control features include separate heating and cooling setpoints, selectable auto or manual changeover, adjustable energy saving mode, adjustable filter reminder, outdoor temperature sensing, LitePort technology for extended system diagnostics and fault notification. Setup selections and diagnostics are stored indefinitely in the Comfort Controls nonvolatile memory eliminating the need for battery backup.
Trane / Service First Part # TCONT402AN32D / XR402
Features
-
Free Shipping!
-
TCONT402AN32D / XR402, replaces previous TCONT402 Models
-
Multi-Stage , 3 Stages Heating (Gas/Oil/Elec) , 2 Stages Cooling
-
BAYSEN01ATEMPA - Outdoor Temperature Sensor Included
-
Heat Pump Thermostat
-
Bright White
-
Optional Accessories / Sold Separately:
NOTE: DO NOT USE WITH TAYPLUS103A
Replaces / Supersedes: TCONT TCONT402 XR402 TCONT402AN32DA TCONT402AN32DAA THT2509 THT-2509 THT02509 THT02250 THT2250 THT-2250 THT02097 THT2097 THT-2097 BAS01680 THT02290 THT2290 THT-2290 TCONT402 THT02291 THT2291 THT-2291 THT0754 THT-0754 THT00754
Click on any of the links below to download associated documentation.
»
TCONT402 Install Manual.pdf
