American Standard / Trane OEM Component
Trane / Service First Part # MOT10512
Specifications
-

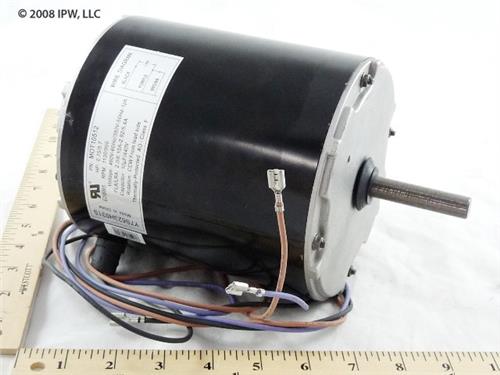

OEM Motor
-
3/4 HP, 460/380-415/60-50/1
-
1100 RPM
-
CCW Lead End
-
Ball Bearing
-
48 Frame
-
10 MFD / 440 Capacitor (sold separately)
-
Freight Not Included & May Be Additional
NOTE: THE MOTOR INCLUDES 4 UNTHREADED HOLES FOR THE SELF THREADING MOUNTING SCREWS. THE OLD SCREWS CAN BE RE-USED, OR ORDER SCR01996 WHICH INCLUDES THE 4 SCREWS. THESE SCREWS ARE NOT INCLUDED WITH THE STOCKED MOTOR
Replaces / Supersedes: MOT-10509 MOT10509 MOT-10512 MOT10512 and others
Commonly Found in the Following Packaged Cooling Units: THC092F4***0* THC102A4***0* THC102A4***1* THC102A4***2* THC102A4***3* THC102F4***0* THC120A4***0* THC120A4***1* THC120A4***2* THC120A4***3* TSC072AD***0* TSC072AD***1* TSC072AD***2* TSC072AD***3* TSC072BD***0* TSC072BD***1* TSC072ED***0* TSC072ED***1* TSC090AD***0* TSC090AD***1* TSC090AD***2* TSC090AD***3* TSC090BD***0* TSC090BD***1* TSC090ED***0* TSC090ED***1* TSC092E4***0* TSC092E4***1* TSC092F4***0* TSC092F4***1* TSC102A4***0* TSC102A4***1* TSC102A4***2* TSC102A4***3* TSC102AD***0* TSC102AD***1* TSC102AD***2* TSC102AD***3* TSC102BD***0* TSC102BD***1* TSC102E4***0* TSC102E4***1* TSC102ED***0* TSC102ED***1* TSC102F4***0* TSC102F4***1* TSC120A4***0* TSC120A4***1* TSC120A4***2* TSC120A4***3* TSC120AD***0* TSC120AD***1* TSC120AD***2* TSC120AD***3* TSC120BD***0* TSC120BD***1* TSC120E4***0* TSC120E4***1* TSC120ED***0* TSC120ED***1* TSC120F4***0* TSC120F4***1*
Commonly Found in the Following Packaged Heat Pump Units: WSC072AD***0* WSC072AD***1* WSC072AD***2* WSC072BD***0* WSC072BD***1* WSC072BD***2* WSC072ED***0* WSC072ED***1* WSC090AD***0* WSC090AD***1* WSC090AD***2* WSC090BD***0* WSC090BD***1* WSC090BD***2* WSC090E4***0* WSC090ED***0* WSC090ED***1* WSC120A4***0* WSC120A4***1* WSC120A4***2* WSC120A4***3* WSC120AD***0* WSC120AD***1* WSC120AD***2* WSC120ED***0* WSC120ED***1*
Commonly Found in the Following Packaged Gas/Electric Units: YHC092F4***0* YHC102A4***0* YHC102A4***1* YHC102A4***2* YHC102A4***3* YHC102F4***0* YHC120A4***0* YHC120A4***1* YHC120A4***2* YHC120A4***3* YSC072AD***0* YSC072AD***1*
Additional products available , Contact Us with your System's Model & Serial Number for more information.
