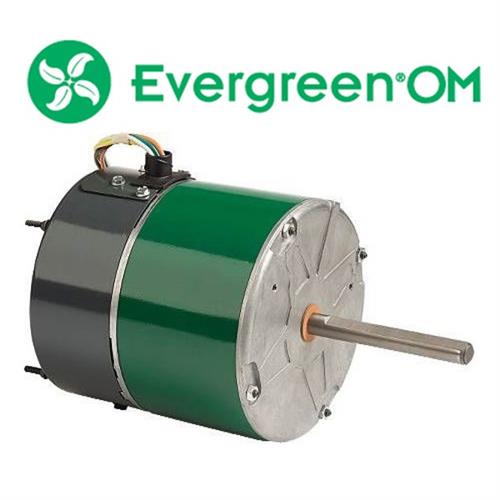

Evergreen OM is a versatile high efficiency ECM designed motor to replace induction motors (shaded pole or PSC) in outdoor fan applications. These applications include motors used with direct drive fan propellers (axial fan blades) in A/C , HVAC , and/or Heat Pump Systems incluceing split or packaged systems.

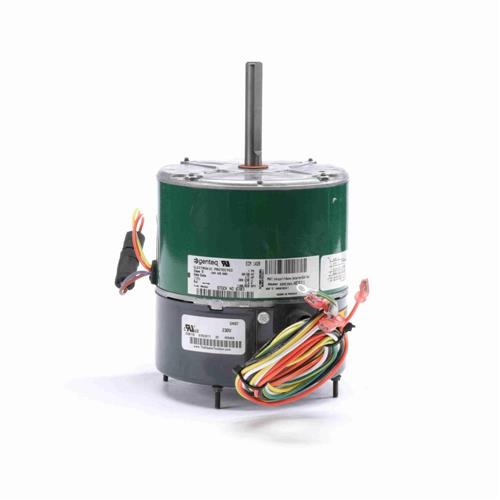

Evergreen # OM 6303
Features / Specifications
-
FREE SHIPPING!
-
1/2" Shaft
-
Max Current 3.5 Amps
-
NEMA 48-Frame , 5.6" Diameter
-
Horizontal & Vertical Shaft Down (VSD) Mounting
-
Reversible Rotation: CCW or CW
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: American Standard , Trane , Lennox , Carrier , Rheem , Ruud and 100's of other OEM PSC Motors. These motors DO NOT REPLACE OEM Constant Outdoor Fan ECM Motors.
DOES NOT REPLACE Azure Digi-Motor EON , 3.0 , 2.3 and 2.5 ECM Motors
Click on any of the links below to download associated documentation.
»
Evergreen OM Installation Guide.pdf
»
Evergreen OM Specifications.pdf
