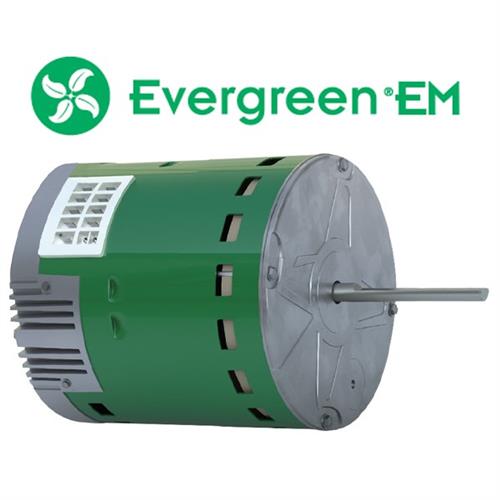

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.
Evergreen # EM 6207E
Features / Specifications
-
-
Max Current 6.0 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes American Standard & Trane D672366G27 , MOT12282 , MOT12291 , MOT12492 , MOT-12492 , MOT13040 , MOT13135 , MOT13137 , MOT-13137 , MOT13909 , MOT14730 , MOT16684 , MOT16685 , MOT17039 , MOT17040 , MOT17045 , MOT17046 , MOT17052 , MOT17054 , MOT17838 , MOT18637 , MOT18638 , 815585020516 , X70370580060 and others
Replaces / Supersedes Carrier / ICP HD46AR250 HD46AR246 HD46AR248 HD46AE239 , HD46AR242 , HK46ER230 , HK46ER231 , HK46ER232 , HK46ER233 , HK46ER244 , HK46ER248 , HK46ER249 , HK46ER252 , HK46ER253 , HK46ER254 , HK46ER255 and others
Replaces / Supersedes Lennox R46132-022 , R46132-024 and other 3/4 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10801. DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
