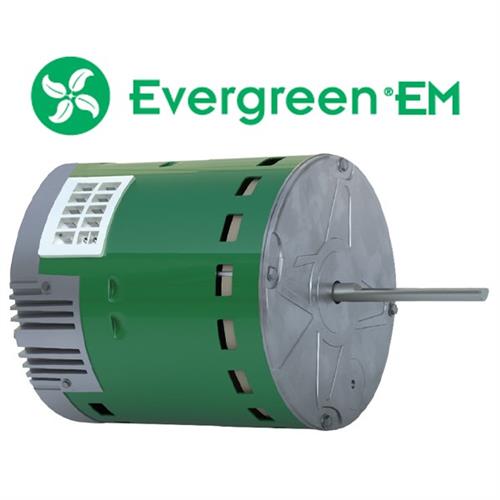

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.

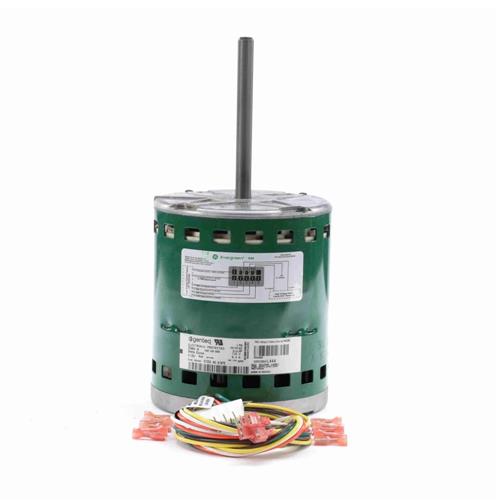

Evergreen # EM 6107E
Features / Specifications
-
-
Max Current 8.4 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes American Standard / Trane 6107 ECTL 6107ECTL MOT12247 MOT12251 MOT12252 MOT12257 MOT12258 MOT13005 MOT13006 MOT13039 MOT13122 MOT13124 MOT13128 MOT13127 MOT13125 MOT14396 MOT14395 MOT14393 MOT17736 MOT17737 MOT17738 MOT17739 MOT17746 MOT18272 X70370580050
Replaces / Supersedes ALL X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10801. DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
Additional discounts available for orders of (35) motors or more...Contact Us for a quote
