Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.

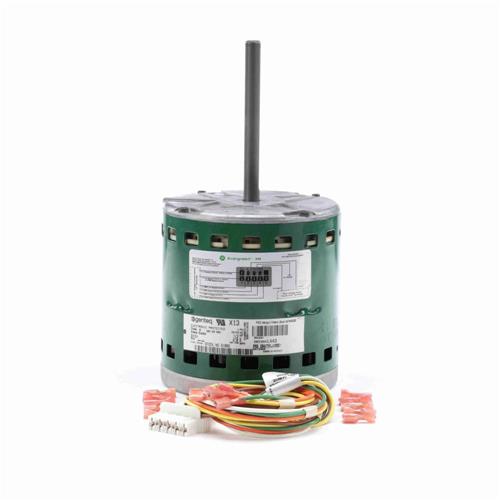

Evergreen # EM 6105E
Features / Specifications
-
FREE SHIPPING!
-
Max Current 6.8 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: American Standard MOT12245 , MOT12244 , MOT12250 , MOT12249 , MOT12246 , MOT12256 , MOT12255 , MOT12254 , MOT12262 , MOT12263 , X70370580030 , MOT13003 , MOT14392 , MOT14391 , MOT17735 , MOT17745 , MOT18271 , X70370580030
Replaces / Supersedes: S81-947 , X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800. DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
Additional discounts available for orders of (35) motors or more...Contact Us for a quote
