6203E , 1/3 HP 230V Evergreen EM Motor

SKU: 6203E | Brand: Capcom / Genteq / GE
QTY
Price
Please Contact Us for pricing.
This Item Ships FREE!
Add To Cart
Overview
Documentation
Media

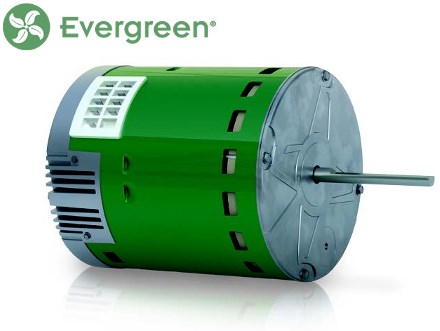

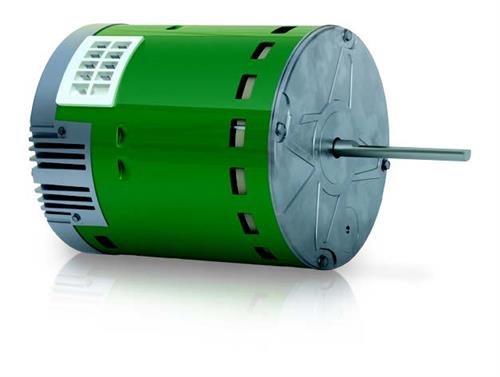

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors.  5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs.  Fully encapsulated, one-piece design offers lower profile and easy installation.  Bi-directional CW and CCW with rotation sensing technology.

Evergreen # EM 6203E

Features / Specifications
  • 1/3 HP
  • 208-230/60/1 Voltage
  • 600 - 1200 RPM
  • FREE SHIPPING!
  • Max Current 2.8 Amps
  • Built-In 4kV Surge Protection
  • NEMA 48-Frame , 5.6" Diameter
  • Multi-Speed , Constant Torque , Brushless DC Motor
  • 5 Discrete Speeds Using 24VAC (3 using 18VDC)
  • Reversible Rotation with Auto Sensing Technology
  • Electronic Overload Protection
  • 48 FRAME , Belly Band Mount
  • UL & CSA Recognized
  • 2-Year Warranty
Replaces / Supersedes American Standard & Trane D672366G29 , D672366G30 , D672366G31 , MOT12293 , MOT12294 , MOT12295 , MOT12495 , MOT13002 , MOT13590 , MOT13591 , MOT13766 , MOT13905 , MOT13906 , MOT13911 , MOT17018 , MOT17042 , MOT17837 , MOT18455 , X70370580020

Replaces / Supersedes Carrier / ICP 1173782 , 1173783 , 1173784 , 5SME39DXL034 , 5SME39DXL035 , 5SME39DXL294 , 5SME39DXL295 , 5SME39DXL415 , 815585020479 , HD42AR226 , HD42AR224 ,HD42AQ234 , HD42AQ242 , HK42ER210 , HK42ER211 , HK42ER223 , HK42ER224 , HK42ER225 , HK42ER226 , HK42ER227 , HK42ER228 , HK42ER229 , HK42ER235 , HK42ER236 , HK42ER237 , HK42ER238 AmStd / Trane GAM5B0B30M21EAB GAM5B0B30M21SAA GAM5B0B30M21EAA GAM5B0B30M21SBA

Replaces / Supersedes S81-946 and other 1/3 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800.  DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors

Often Found in FB4CNF030T00ABAA and 100's of Other Air Handlers and Furnaces

Additional Products & Discounts available...visit our New Website: www.AirstarSolutions.com or Contact Us
Click on any of the links below to download associated documentation.

» Brochure - Evergreen EM.pdf
» Installation Guide Evergreen EM.pdf
» Specifications - Evergreen EM.pdf
