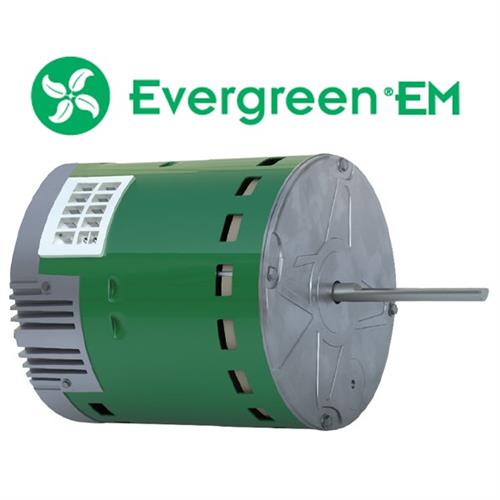

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.
Evergreen # EM 6103E
Features / Specifications
-
FREE SHIPPING!
-
Max Current , 4.8 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: 6103ECTL 6103 MOT17733 MOT17744 S81-945 Rheem / Ruud 51-102171-03 51-102171-01 51-102171-02 X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800. DOES NOT REPLACE EON 3.0 , 2.3 and 2.5 ECM Motors
Additional discounts available for orders of (35) motors or more...Contact Us for a quote
